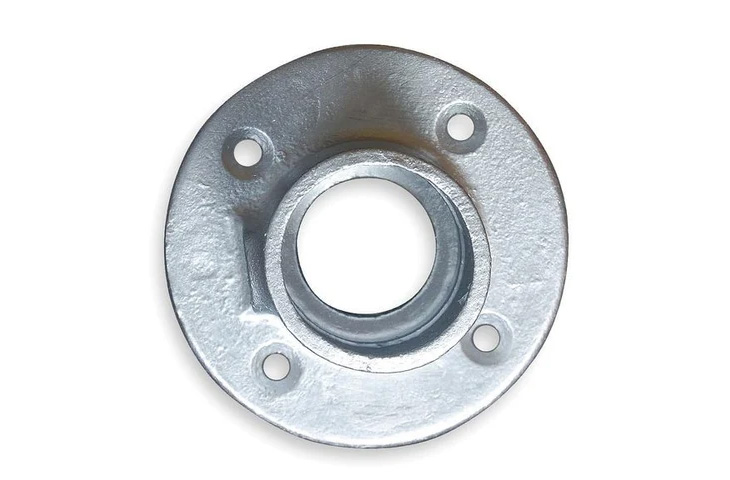

Manufacturers, Suppliers, Traders, Exporters and Stockists of Stainless Steel Cast Flanges
ARK Stainless is a leading manufacturer and supplier of high-quality Cast Flanges in India. Known for their durability and reliability, Cast Flanges have been a popular piping connection form in industrial and commercial applications for decades. These flanges can be made from materials such as cast iron, stainless steel, or other alloys, and are specifically designed to join two separate pipes or components together securely.
As essential components in piping systems and related applications, Cast Flanges come in various materials including carbon steel, alloy steel, stainless steel, and cast iron. Each flange features a raised area that facilitates the attachment of other system components, providing a robust connection between pipes, fittings, and valves. Depending on the application, these flanges are available in different sizes, designs, shapes, and thicknesses, which contribute to their overall strength. Understanding the application requirements is crucial, particularly in high-pressure situations or environments exposed to extreme temperatures.
Cast Flanges are frequently used in piping systems and fluid power applications, such as valves and pumps, offering secure connections that allow for easy access during repairs or maintenance. Moreover, they are often less expensive than other types of flanges, making them an ideal choice for budget-conscious projects.
For optimal performance, Cast Flanges must be properly welded by skilled welders who are experienced with this type of material. The welding process begins by cleaning the flange surface of any dirt or debris before applying a flux coating to prevent oxidation. A welding rod is then inserted into the joint and heated until it melts into the surrounding metal, forming a strong bond that can withstand pressure and external factors once cooled.
Our range of SS Cast Flanges includes various grades such as 304 Cast Flanges, 316 Cast Flanges, Duplex Cast Flanges, and Super Duplex Cast Flanges. Each type is designed to meet specific application needs, offering advantages like seamless finishes and enhanced corrosion resistance. Additionally, we leverage precision metal stamping techniques in our manufacturing processes, which enhance the quality and precision of our Cast Flanges and related products.
We also provide precision metal stamping parts and precision sheet metal stamping parts, ensuring that our offerings are comprehensive and meet the highest industry standards. Our commitment to quality means that every product is crafted with attention to detail, making them reliable for diverse applications.
We export our high-quality SS Cast Flanges to various countries, including the United Arab Emirates, Brazil, Russia, Bangladesh, Indonesia, Egypt, Qatar, Iran, Kuwait, Taiwan, Oman, South Africa, Saudi Arabia, Australia, Pakistan, and Malaysia.
Specification of Cast Flanges
| Cast Flanges – ASME/ANSI 125 lb | ||||
|---|---|---|---|---|
| Pipe Size (inches) |
Outside Diameter (inches) |
Number of Bolt Holes | Bolt Hole Diameter (inches) |
Bolt Circle (inches) |
| 1 | 4-1/4 | 4 | 5/8 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 5/8 | 3-1/2 |
| 1-1/2 | 5 | 4 | 5/8 | 3-7/8 |
| 2 | 6 | 4 | 3/4 | 4-3/4 |
| 2-1/2 | 7 | 4 | 3/4 | 5-1/2 |
| 3 | 7-1/2 | 4 | 3/4 | 6 |
| 3-1/2 | 8-1/2 | 8 | 3/4 | 7 |
| 4 | 9 | 8 | 3/4 | 7-1/2 |
| 5 | 10 | 8 | 7/8 | 8-1/2 |
| 6 | 11 | 8 | 7/8 | 9-1/2 |
| 8 | 13-1/2 | 8 | 7/8 | 11-3/4 |
| 10 | 16 | 12 | 1 | 14-1/4 |
| 12 | 19 | 12 | 1 | 17 |
| 14 | 21 | 12 | 1-1/8 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1-1/8 | 21-1/4 |
| 18 | 25 | 16 | 1-1/4 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/4 | 25 |
| 24 | 32 | 20 | 1-3/8 | 29-1/2 |
| 30 | 38-3/4 | 28 | 1-3/8 | 36 |
| 36 | 46 | 32 | 1-5/8 | 42-3/4 |
| 42 | 53 | 36 | 1-5/8 | 49-1/2 |
| 48 | 59-1/2 | 44 | 1-5/8 | 56 |
| 54 | 66-1/4 | 44 | 2 | 62-3/4 |
| 60 | 73 | 52 | 2 | 69-1/4 |
Cast Flanges available in Grades
- SS Grade 304 Cast Flanges
- SS Grade 304L Cast Flanges
- SS Grade 304H Cast Flanges
- SS Grade 310 Cast Flanges
- SS Grade 316 Cast Flanges
- SS Grade 316L Cast Flanges
- SS Grade 316LN Cast Flanges
- SS Grade 316Ti Cast Flanges
- SS Grade 309 Cast Flanges
- SS Grade 310S Cast Flanges
- SS Grade 317L Cast Flanges
- SS Grade 321 Cast Flanges
- SS Grade 321H Cast Flanges
- SS Grade 347 Cast Flanges
- SS Grade 409 Cast Flanges
- SS Grade 410 Cast Flanges
- SS Grade 420 Cast Flanges
- SS Grade 430 Cast Flanges
- SS Grade 446 Cast Flanges
- SS Grade 202 Cast Flanges
- SS Grade 12X18H10T Cast Flanges
- SS Grade Duplex Cast Flanges
- SS Grade Super Duplex Cast Flanges
- SS Grade Monel Cast Flanges
- SS Grade Inconel Cast Flanges
- SS Grade Hastelloy Cast Flanges
